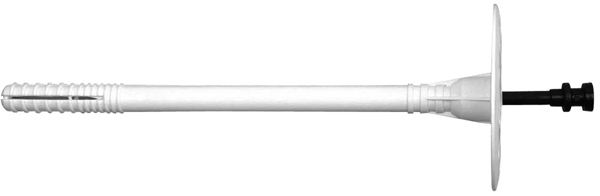

IZO
Plastic insulation pin for glass wool, rock wool and polystyrene boards fixings. Expanding nail made from fiberglass reinforced nylon. Plate diameter 60 mm (IZO 10070 - plate diameter 50 mm).
Installation and packages parameters
Reference |
Max. usable |
Drillig |
Min. hole |
Box |
IZO 10070/500 |
20 |
10 |
55 |
200 |
IZO 10090/400 |
40 |
10 |
55 |
200 |
IZO 10120/600 |
70 |
10 |
55 |
200 |
IZO 10140/500 |
90 |
10 |
55 |
200 |
IZO 10160/400 |
110 |
10 |
55 |
200 |
IZO 10180/400 |
130 |
10 |
55 |
200 |
IZO 10200/400 |
150 |
10 |
55 |
200 |

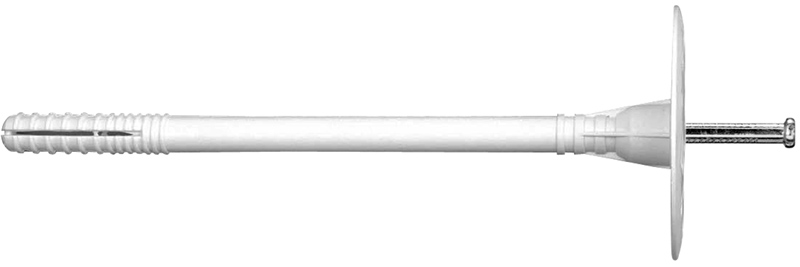

IZOM
Plastic insulation pin for glass wool, rock wool and polystyrene boards fixings. Steel white zinc plated expanding nail. Plate diameter 60 mm.
Installation and packages parameters
Reference |
Max. usable |
Drillig |
Min. hole |
Box |
IZOM 10090/400 |
40 |
10 |
55 |
200 |
IZOM 10120/600 |
70 |
10 |
55 |
200 |
IZOM 10140/500 |
90 |
10 |
55 |
200 |
IZOM 10160/400 |
110 |
10 |
55 |
200 |
IZOM 10180/400 |
130 |
10 |
55 |
200 |
IZOM 10200/400 |
150 |
10 |
55 |
200 |
