NT / NTK

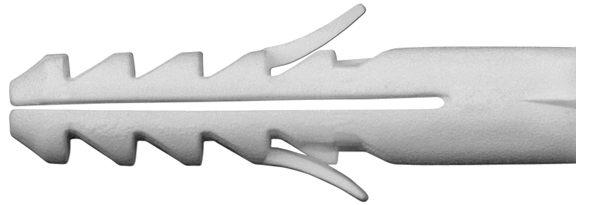

Polyethylene plug for standard fixings in solid materials without (NT) and with (NTK) flange.
Installation and packages parameters
|
Reference |
Drilling diameter [mm] |
Screw diameter [mm] |
Box [pcs] |
Outer [pcs] |
|
NTK 05025/200 |
5 |
3.0÷4.0 |
200 |
9 600 |
|
NTK 06030/200 |
6 |
3.5÷4.5 |
200 |
9 600 |
|
NTK 07035/200 |
7 |
4.5÷6.0 |
200 |
9 600 |
|
NTK 08040/200 |
8 |
4.5÷6.0 |
200 |
9 600 |
|
NTK 10050/100 |
10 |
6.0÷8.0 |
100 |
4 800 |
|
NTK 12060/050 |
12 |
8.0÷10.0 |
50 |
2 400 |
| P packaging type - polyethylene bag | ||||
|
P-NTK 05025/100 |
5 |
3.0÷4.0 |
100 |
20 |
|
P-NTK 06030/100 |
6 |
3.5÷4.5 |
100 |
20 |
|
P-NTK 08040/050 |
8 |
4.5÷6.0 |
50 |
20 |
|
P-NTK 10050/025 |
10 |
6.0÷8.0 |
25 |
20 |
|
P-NTK 12060/025 |
12 |
8.0÷10.0 |
25 |
20 |
| XL packaging type |
||||
|
XL-NT 05025/70000 |
5 |
3.0÷4.0 |
70 000 |
- |
|
XL-NT 06030/40000 |
6 |
3.5÷4.5 |
40 000 |
- |
|
XL-NT 07035/25000 |
7 |
4.0÷5.5 |
25 000 |
- |
|
XL-NT 08040/15000 |
8 |
4.5÷6.0 |
15 000 |
- |
|
XL-NT 10050/8000 |
10 |
6.0÷8.0 |
8 000 |
- |
|
XL-NT 12060/4500 |
12 |
8.0÷10.0 |
4 500 |
- |
|
XL-NT 14075/3000 |
14 |
10.0÷12.0 |
3 000 |
- |
|
XL-NTK 05025/60000 |
5 |
3.0÷4.0 |
60 000 |
- |
|
XL-NTK 06030/35000 |
6 |
3.5÷4.5 |
35 000 |
- |
|
XL-NTK 07035/22000 |
6 |
4.0÷5.5 |
22 000 |
- |
|
XL-NTK 08040/15000 |
8 |
4.5÷6.0 |
15 000 |
- |
|
XL-NTK 10050/8000 |
10 |
6.0÷8.0 |
8 000 |
- |
|
XL-NTK 12060/4500 |
12 |
8.0÷10.0 |
4 500 |
- |
Specification
Standard and traditional plug with anti–rotation wings.
Plug geometry allows for easy inserting into the drill hole. Application
All – purpose fixings for light weight application in solid building materials like
solid brick, concrete block, natural stone etc.
Recommended to application inside of the building.
Material
Plug: Polyethylene
Temperature in use: -30 ... +70ºC
Colour: white
