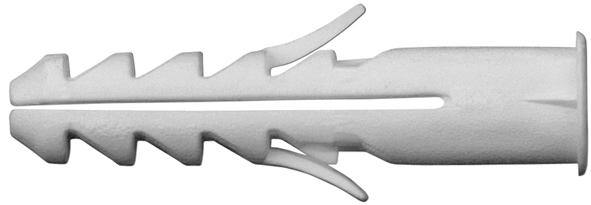

NTX / NTXK
Nylon plug for standard fixings in solid materials
without (NTX) and with (NTXK) flange.
Installation and packages parameters
Reference |
Drilling diameter [mm] |
Screw diameter [mm] |
Box [pcs] |
Outer [pcs] |
NTXK 05025/200 |
5 |
3.0÷4.0 |
200 |
9 600 |
NTXK 06030/200 |
6 |
3.5÷4.5 |
200 |
9 600 |
NTXK 07035/200 |
7 |
4.0÷5.5 |
200 |
9 600 |
NTXK 08040/200 |
8 |
4.5÷6.0 |
200 |
9 600 |
NTXK 10050/100 |
10 |
6.0÷8.0 |
100 |
4 800 |
NTXK 12060/050 |
12 |
8.0÷10.0 |
50 |
2 400 |
NTXK 14075/025 |
14 |
10.0÷12.0 |
25 |
1 800 |
NTX 14075/025 |
14 |
10.0÷12.0 |
25 |
1 800 |
NTX 14100/050 |
14 |
10.0÷12.0 |
50 |
600 |
NTX 14135/050 |
14 |
10.0÷12.0 |
50 |
600 |
NTX 14185/050 |
14 |
10.0÷12.0 |
50 |
600 |
XL packaging type |
||||
XL-NTX 05025/60000 |
5 |
3.0÷4.0 |
60 000 |
- |
XL-NTX 06030/40000 |
6 |
3.5÷4.5 |
40 000 |
- |
XL-NTX 07035/25000 |
7 |
4.0÷5.5 |
25 000 |
- |
XL-NTX 08040/15000 |
8 |
4.5÷6.0 |
15 000 |
- |
XL-NTX 10050/8000 |
10 |
6.0÷8.0 |
8 000 |
- |
XL-NTX 12060/4500 |
12 |
8.0÷10.0 |
4 500 |
- |
XL-NTX 14075/3000 |
14 |
10.0÷12.0 |
3 000 |
- |
XL-NTXK 05025/60000 |
5 |
3.0÷4.0 |
60 000 |
- |
XL-NTXK 06030/35000 |
6 |
3.5÷4.5 |
35 000 |
- |
XL-NTXK 07035/22000 |
7 |
4.0÷5.5 |
25 000 |
- |
XL-NTXK 08040/15000 |
8 |
4.5÷6.0 |
15 000 |
- |
XL-NTXK 10050/8000 |
10 |
6.0÷8.0 |
8 000 |
- |
XL-NTXK 12060/4500 |
12 |
8.0÷10.0 |
4 500 |
- |
XL-NTXK 14075/3000 |
14 |
10.0÷12.0 |
3 000 |
- |
XL-NTX 14100/1500 |
14 |
10.0÷12.0 |
1500 |
- |
XL-NTX 14135/1500 |
14 |
10.0÷12.0 |
1500 |
- |
XL-NTX 14185/1500 |
14 |
10.0÷12.0 |
1500 |
- |
Specification
Standard and traditional plug with anti–rotation wings.
Plug geometry allows for easy inserting into the drill hole.
Application
All – purpose fixings for light weight application in solid building materials like
solid brick, concrete block, natural stone etc.
Material
Plug: Polyamide PA6
Temperature in use: -40 ... +80ºC
Colour: light grey (RAL 7035)
