TDXS

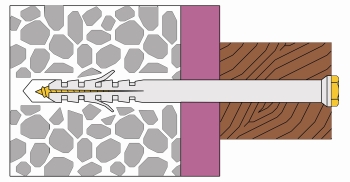

Nylon frame anchor countersunk head with hex-head steel white zinc plated screw for fixings in solid materials.
Installation and packages parameters
Reference |
Max. usable |
Drillig |
Min. anchoring |
Box |
Outer carton [pcs] |
TDXS 10080/050 |
30 |
10 |
50 |
50 |
450 |
TDXS 10100/050 |
50 |
10 |
50 |
50 |
450 |
TDXS 10115/050 |
65 |
10 |
50 |
50 |
300 |
TDXS 10135/050 |
85 |
10 |
50 |
50 |
300 |
TDXS 10160/050 |
110 |
10 |
50 |
50 |
300 |
TDXS 10180/050 |
130 |
10 |
50 |
50 |
300 |
Specification
High grade facade plug – made from polyamide.
Standard expanding zone for various possibility of use.
Plug with special anti-rotation wings.
Application
Natural stone, solid brick, concrete blocks and other solid building materials.
Suitable for fixing of frames, claddings, facades, etc.
Material
Plug: Polyamide PA6
Temperature in use: -40 ... +80ºC
Colour: light grey (RAL 7035)
Screw: Steel 5μm galvanic zinc coated.
