TSX
Nylon frame anchor countersunk head with steel white zinc plated screw POZI recess for fixings in hollow materials.

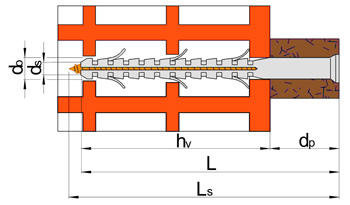

Installation and packages parameters
Reference |
Max. usable |
Drillig diameter [mm] |
Min. anchoring depth [mm] |
Box [pcs] |
Outer carton [pcs] |
TSX 08100/050 |
30 |
8 |
70 |
50 |
450 |
TSX 08120/050 |
50 |
8 |
70 |
50 |
450 |
TSX 10080/050 |
10 |
10 |
70 |
50 |
450 |
TSX 10100/050 |
30 |
10 |
70 |
50 |
450 |
TSX 10115/050 |
45 |
10 |
70 |
50 |
450 |
TSX 10135/050 |
65 |
10 |
70 |
50 |
300 |
TSX 10160/050 |
90 |
10 |
70 |
50 |
300 |
Specification
High grade facade plug – made from polyamide.
Long expanding zone for various possibility of use.
Plug with special anti-rotation wings.
Application
Hollow brick, aerated concrete, light grovel, etc.
Suitable for fixing of frames, claddings, facades, etc.
Material
Plug: Polyamide PA6
Temperature in use: -40 ... +80ºC
Colour: light grey (RAL 7035)
Screw: Steel 5μm galvanic zinc coated.
