TSXHP

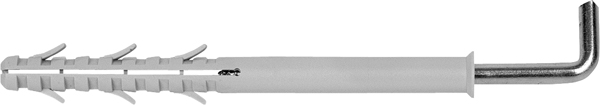

Nylon frame anchor countersunk head with steel white zinc plated square hook for fixings in hollow materials.
Installation and packages parameters
Reference |
Max. usable |
Drillig |
Min. anchoring |
Box |
Outer carton |
TSXHP 08100/050 |
- |
8 |
70 |
50 |
450 |
TSXHP 08120/050 |
- |
8 |
70 |
50 |
450 |
Specification
High grade facade plug – made from polyamide.
Long expanding zone for various possibility of use.
Plug with special anti-rotation wings.
Application

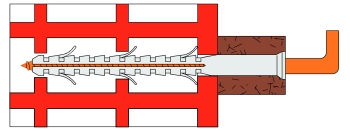

Hollow brick, aerated concrete, light grovel, etc.
Suitable for fixing of frames, claddings, facades, etc.
Material
Plug: Polyamide PA6
Temperature in use: -40 ... +80ºC
Colour: light grey (RAL 7035)
Hook: Steel 5μm galvanic zinc coated.
