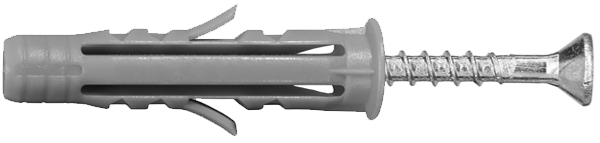

TUZ W (with screw)
Polyethylene plug for standard fixing in solid and hollow materials. Steel white zinc plated screw POZI recess.
Installation and packages parameters
|
Reference |
Drilling diameter [mm] |
Screw [mm] |
Box [pcs] |
Outer [pcs] |
|
TUZ 06030 W35035/100 |
6 |
3.5x35 |
100 |
1 800 |
|
TUZ 08040 W40050/050 |
8 |
4.0x50 |
50 |
1 800 |
| P packaging type - polyethylene bag | ||||
|
P-TUZ 06030 W35035/050 |
6 |
3.5x35 |
50 |
20 |
|
P-TUZ 08040 W40050/025 |
8 |
4.0x50 |
25 |
20 |
Specification
Universal plug for all kinds of structure. Designed for achiving maximum carrying
power of fixing. Special construction makes the correct leading of the screw
and optimum expansion to all directions. Special designe of plug's flange with
wings prevents too deep inserting and rotation during tightening. TUZ is suitable for screws with high and sharp thread contour. Application
Suitable for wide range of structures: sheet formed, hollow and solid
materials (concrete, solid brick, hollow brick, natural stone, aerated concrete,
light grovel, plaster-board, chipboard, etc.). Cracking plug for diverse fixing
objects such as bookstands, shelfs, baseboards, curtain rails, wall lighting fittings etc. Material
Plug: Polyethylene
Temperature in use: -30 ... +70ºC
Colour: light grey (RAL 7037)
Screw: Steel 5μm galvanic zinc coated.
