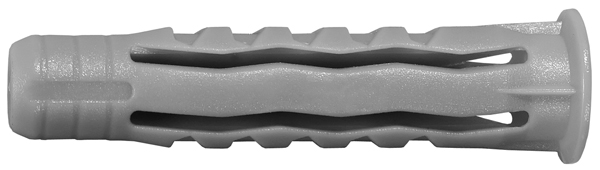

UTX
Nylon plug for standard fixing in solid and hollow materials.
Installation and packages parameters
|
Reference |
Drilling diameter [mm] |
Screw diameter [mm] |
Box [pcs] |
Outer [pcs] |
|
UTX 06030/200 |
6 |
3.5÷4.5 |
200 |
9 600 |
|
UTX 08040/100 |
8 |
4.0÷6.0 |
100 |
7 200 |
|
UTX 10050/050 |
10 |
6.0÷8.0 |
50 |
3 600 |
| P packaging type - polyethylene bag | ||||
|
P-UTX 06030/100 |
6 |
3.5÷4.5 |
100 |
20 |
|
P-UTX 08040/050 |
8 |
4.0÷6.0 |
50 |
20 |
|
P-UTX 10050/025 |
10 |
6.0÷8.0 |
25 |
20 |
Specification
Universal plug for all kinds of structure. Designed for achiving maximum carrying
power of fixing. Special construction makes the correct leading of the screw
and optimum expansion to all directions. Special designe of plug's flange with
wings prevents too deep inserting and rotation during tightening. UTX is suitable for screws with high and sharp thread contour. Application
Suitable for wide range of structures: sheet formed, hollow and solid
materials (concrete, solid brick, hollow brick, natural stone, aerated concrete,
light grovel, plaster-board, chipboard, etc.). Cracking plug for diverse fixing
objects such as bookstands, shelfs, baseboards, curtain rails, wall lighting fittings etc. Material
Plug: Polyamide PA 6
Temperature in use: -40 ... +80ºC
Colour: light grey (RAL 7035)
