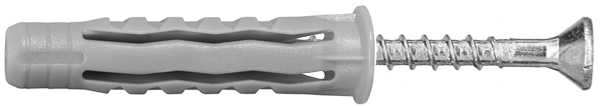

UTX W (with screw)
Nylon plug for standard fixing in solid and hollow materials. Steel white zinc plated screw POZI recess.
Installation and packages parameters
|
Reference |
Drillig diameter [mm] |
Screw [mm] |
Box [pcs] |
Outer [pcs] |
|
UTX 06030 W45040/100 |
6 |
4.5x40 |
100 |
1 800 |
|
UTX 08040 W50050/050 |
8 |
5.0x50 |
50 |
900 |
|
UTX 10050 W60060/025 |
10 |
6.0x60 |
25 |
450 |
| P packaging type - polyethylene bag | ||||
|
P-UTX 06030 W45040/050 |
6 |
4.5 x40 |
50 |
20 |
|
P-UTX 08040 W50050/025 |
8 |
5.0x50 |
25 |
20 |
|
P-UTX 10050 W60060/020 |
10 |
6.0x60 |
20 |
20 |
Specification
Universal plug for all kinds of structure. Designed for achiving maximum carrying
power of fixing. Special construction makes the correct leading of the screw
and optimum expansion to all directions. Special designe of plug's flange with
wings prevents too deep inserting and rotation during tightening. UTX is suitable for screws with high and sharp thread contour. Application
Suitable for wide range of structures: sheet formed, hollow and solid
materials (concrete, solid brick, hollow brick, natural stone, aerated concrete,
light grovel, plaster-board, chipboard, etc.). Cracking plug for diverse fixing
objects such as bookstands, shelfs, baseboards, curtain rails, wall lighting fittings etc. Material
Plug: Polyamide PA 6
Temperature in use: -40 ... +80ºC
Colour: light grey (RAL 7035)
Screw: Steel 5μm galvanic zinc coated.
