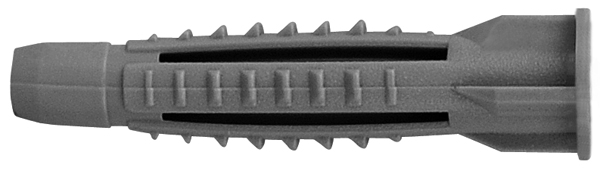

ZUMK
Nylon plug with flange for standard fixing in solid and hollow materials, also in drywalls and building boards.
Plug type without flange (ZUM) available in XL packing.
Installation and packages parameters
|
Reference |
Drilling diameter [mm] |
Screw diameter [mm] |
Box [pcs] |
Outer [pcs] |
|
ZUMK 06030/200 |
6 |
3.5÷4.0 |
200 |
9 600 |
|
ZUMK 06040/200 |
6 |
3.5÷4.0 |
200 |
7 200 |
|
ZUMK 08050/100 |
8 |
4.5÷5.0 |
100 |
7 200 |
|
ZUMK 10060/050 |
10 |
6.0÷8.0 |
50 |
3 600 |
| P packaging type - polyethylene bag | ||||
|
P-ZUMK064 W40050/050 |
6 |
4.0x50 |
50 |
20 |
|
P-ZUMK085 W50070/025 |
8 |
5.0x70 |
25 |
20 |
|
P-ZUMK106 W60080/020 |
10 |
6.0x80 |
20 |
20 |
| XL packaging type |
||||
|
XL-ZUMK 06030/35000 |
6 |
3.5÷4.0 |
35 000 |
- |
|
XL-ZUMK 06040/25000 |
6 |
3.5÷4.0 |
25 000 |
- |
|
XL-ZUMK 08050/11000 |
8 |
4.5÷5.0 |
11 000 |
- |
|
XL-ZUMK 10060/6000 |
10 |
6.0÷8.0 |
6 000 |
- |
| XL packaging type |
||||
|
XL-ZUM 06030/40000 |
6 |
3.5÷4.0 |
40 000 |
- |
|
XL-ZUM 06040/30000 |
6 |
3.5÷4.0 |
30 000 |
- |
|
XL-ZUM 08050/13000 |
8 |
4.5÷5.0 |
13 000 |
- |
|
XL-ZUM 10060/6000 |
10 |
6.0÷8.0 |
6 000 |
- |
Specification
Universal plug made from polyamide. The body with four sectors for a smooth
and winding expansion, special design gives better grips and prevents rotation during tightening.
In hollow materials and in sheet formed structures this plug builds a knot in the free space when the attaching screw is tightened. ZUMK can be used with
wood and chipboard screws. Application
Suitable for wide range of structures: sheet formed, hollow and solid
materials (concrete, solid brick, hollow brick, natural stone, aerated concrete,
light grovel, plaster-board, chipboard, etc.). Cracking plug for diverse fixing
objects such as bookstands, shelfs, baseboards, curtain rails, wall lighting fittings etc. Material
Plug: Polyamide PA 6
Temperature in use: -40 ... +80ºC
Colour: light grey (RAL 7035)
